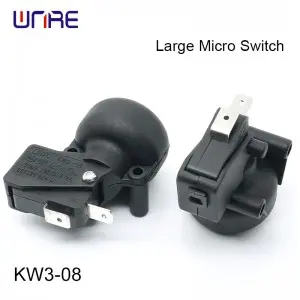

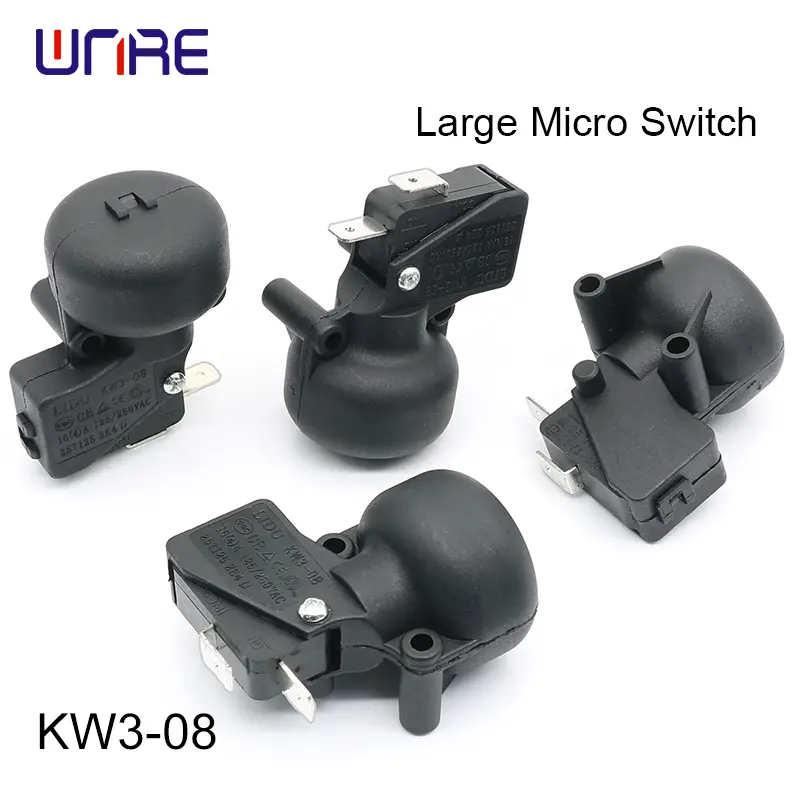

KW3-08 Largre Micro Switch With Steel Ball Anti-Tip Safety Normally Closed 250V 5A for Overload Protection and Limit Control Circuits

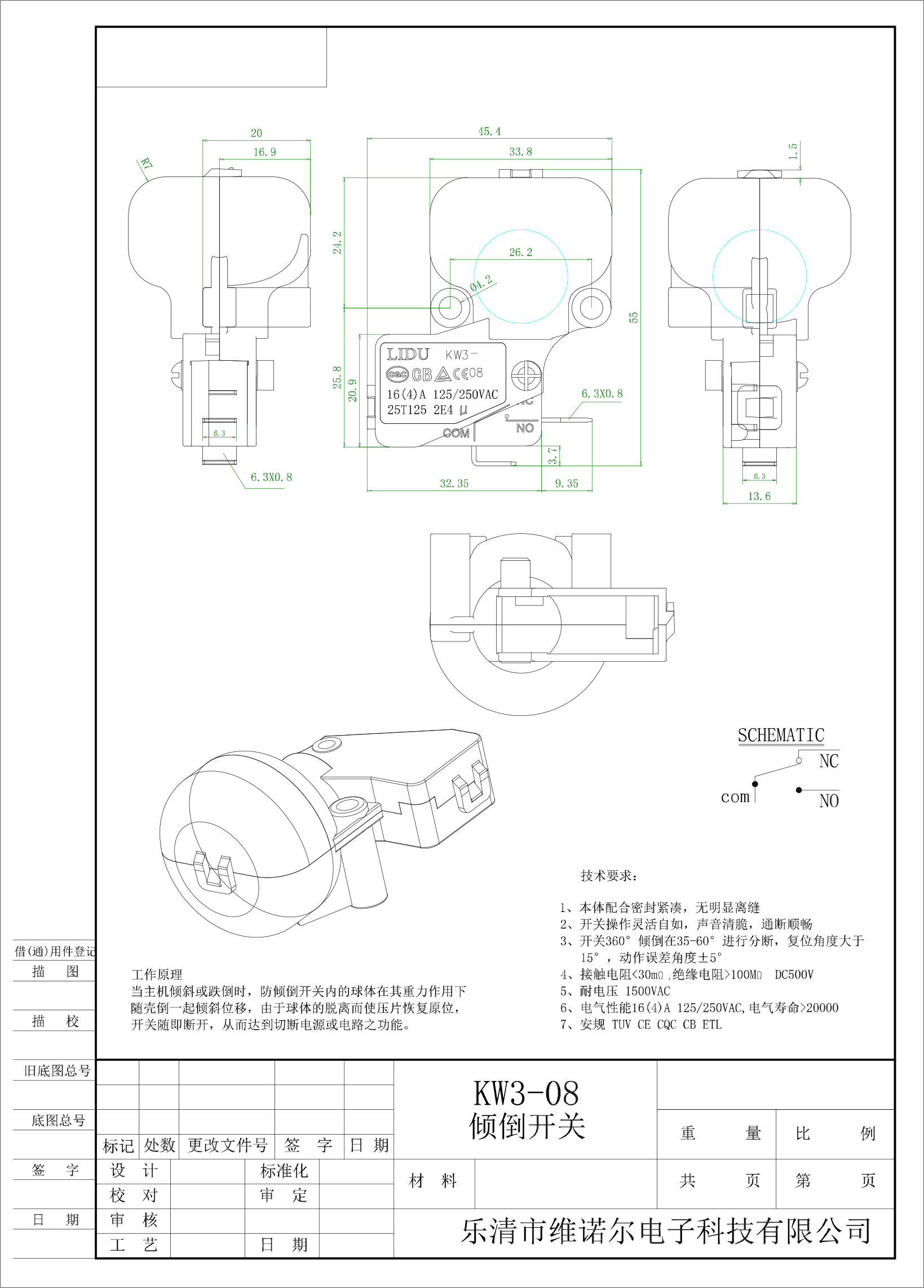

Model no. KW3-08

DESCRIPTION：LARGE MICRO SWITCH

RATING：16A 125V/250V AC

LIFE：>20000

contact resistance：30mΩ（Max）

insulation resistance：500VDC 100MΩ（Min）

Type：Long Lever

Contact Type：Normally Closed

FEATURES

• Short travel for precise triggering

• Safety applications

• Limit protection

• overload detection

Product Detail
