OEM China KW3-OD-G Micro Switch 16A NC 2-Pin for Electronics & Electricals Companies Suppliers | Weinuoer
  • 737c41b95358f4cf881ed7227f70c07
KW3-OD-G Largre Micro Switch Normally Closed 2-Pin Universal 16A for Wide Range of Electrical and Electronic Applications Featured Image
  • KW3-OD-G Largre Micro Switch Normally Closed 2-Pin Universal 16A for Wide Range of Electrical and Electronic Applications
  • KW3-OD-G Largre Micro Switch Normally Closed 2-Pin Universal 16A for Wide Range of Electrical and Electronic Applications

KW3-OD-G Largre Micro Switch Normally Closed 2-Pin Universal 16A for Wide Range of Electrical and Electronic Applications

Short Description:

Model no. KW3-OD-G

DESCRIPTION：LARGE MICRO SWITCH

RATING：16A 125V/250V AC

LIFE：50000

contact resistance：30mΩ（Max）

insulation resistance：500VDC  100MΩ（Min）

Type：Lever

Contact Type：Normally Closed

FEATURES

• Short travel for precise triggering

• Safety applications

• Limit protection

• overload detection


Product Detail

FAQ

Product Tags

APPLICATIONS:
Home Appliances | Industrial Automation | Automotive Electronics | Security Devices | Medical Equipment | New Energy

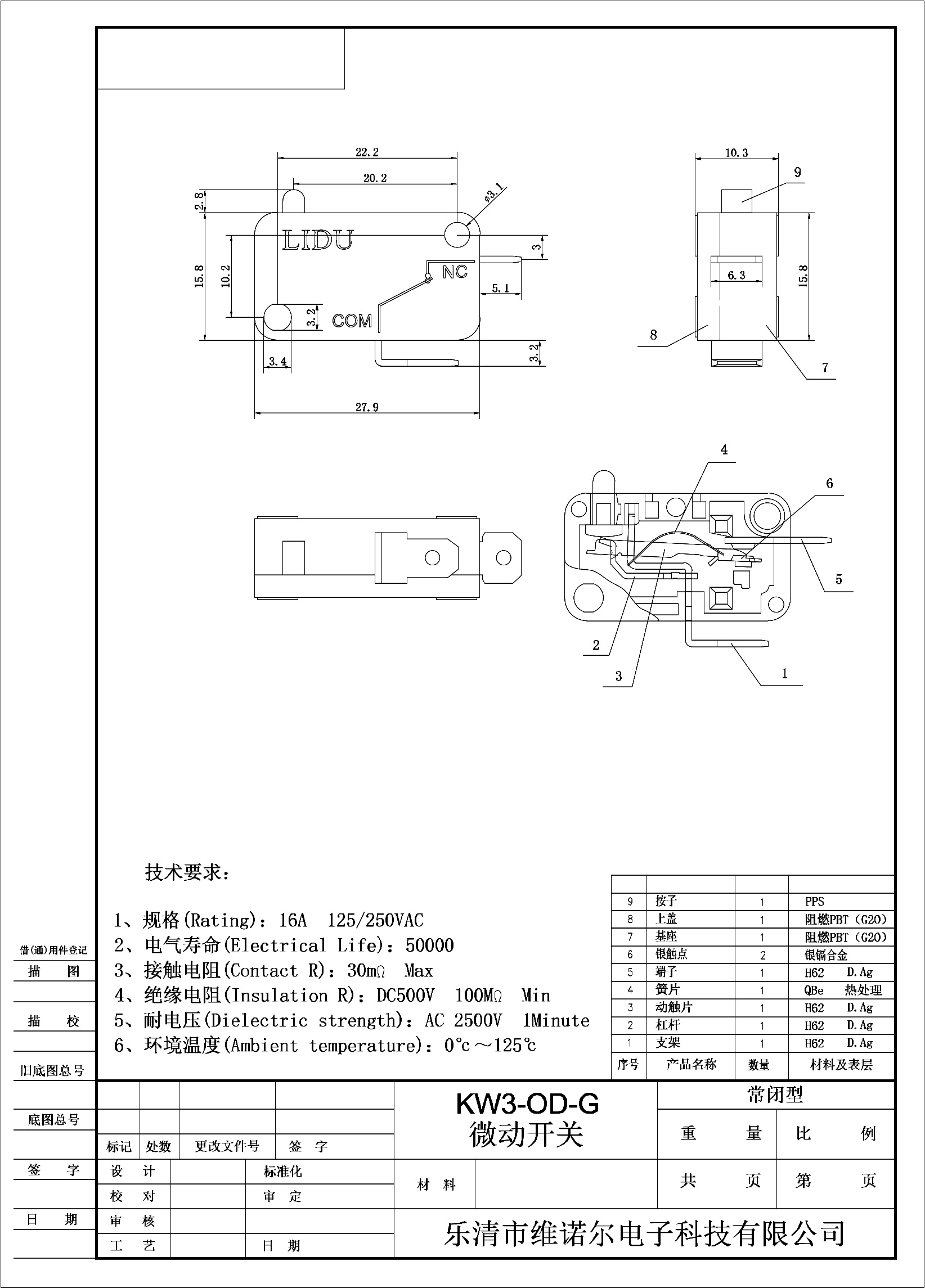

DRAWIING:

KW3-OD-G
